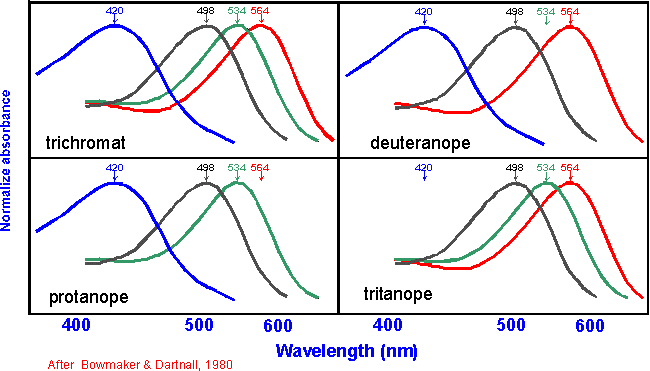

Spectral absorbance functions of trichromats and dichromats

The black curve with its peak at 498 nm is the spectral absorbance function for the rod photopigment, rhodopsin.
If you want a more detailed explanation for the meaning of these curves, select spectral sensitivity functions
